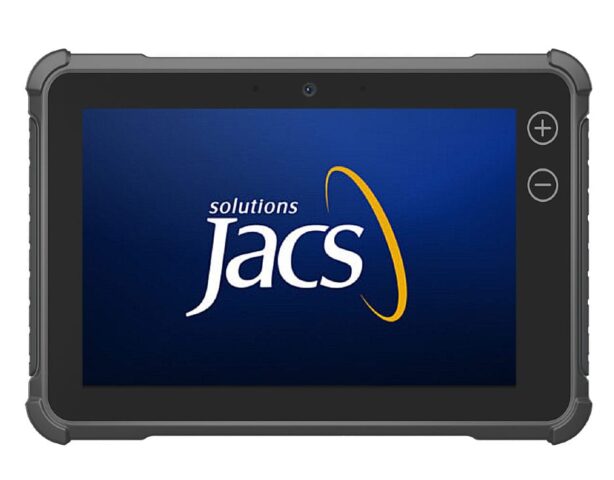

TR0840V2 Android Tablet

Tough, Accessible, Connected

The 8” TR0840V2 tablet is tough, sleek, and ready for anything. Ease your worries with its tamper-proof design; secure pogo-pin connectors and a screw-less casing ensures the best performance in unpredictable environments. It features accessible front-facing volume buttons and a vivid 1280 x 800 WXGA display. The TR0840 is your dependable, cost-effective tool for getting the job done — wherever that may be.

Icon of a fist punching sideways with great force

Tough

Able to withstand drops of 1.2 meters, TR0840V2 is built for unpredictable environments.

Simple security badge icon

Accessible

Pogo-pins, NFC, RFID, and Android 14 – customize a combination of convenient hardware and firmware according to your needs.

Icon of two connected puzzle pieces

Connected

Supports Wi-Fi and LTE across multiple bands and major carriers, coupled with customizable GPS, GLONASS, and BEIDOU technology.

Resources

Specifications

CHIPSET AND CPU RK3566, Cortex-A55 Quad core 1.8GHz
BLUETOOTH Bluetooth 5.1
RAM/ROM 4GB LPDDR4X / 32GB eMMC
NFC Supported
OPERATING SYSTEM Android 14
CHARGING Magnetic Pogo Pin 5V2A with OVP, Dock Pogo Pin 5V2A
with OVP, JACS Wireless Charging (Optional)
DISPLAY 1280 x 800 pixels
Battery 3.7V 6200 mAh Lithium Ion
Screen Size 8.0 inches
PHYSICAL KEYS Power on/off
Front facing volume up/down
SCREEN SPECIFICATIONS Capacitive 5-Point Multi-Touch
AUDIO 3.5mm 4-Pole CTIA earphone jack, Internal Microphone
(Sensitivity -42dB), Dual Speakers (4ohm/2.0W)
CAMERA Front: 5MP Auto-focus
Rear: 8MP Auto-focus
WEIGHT 1.21 lbs
WLAN 802.11 a/b/g/n/ac/ax 2.4GHz/5GHz
DIMENSIONS 8.94” x 5.98” x 0.71”
GPS GPS, GLONASS, BEIDUO, GLONASS+BEIDOU, GPS+BEIDOU,
GPS+GLONASS (Default)
CELLULAR NETWORK LTE Cat 6 TDD: B41(194M)/42/43/46/48​
FDD: B2/4/5/7/12/13/14/17/25/26/29/30/66/71
WCDMA Bands: B2/4/5
